如何基于 srsRAN_4G 搭建 LTE 基站

记录一下如何基于 srsRAN_4G 搭建 LTE 基站

本文使用的软硬件环境如下:

CPU: Intel i7-14700KF (28) @ 5.500GHz

USRP: B210

OS: Ubuntu 20.04.6 LTS x86_64

UHD: UHD 4.6.0.0

安装UHD

参考官方链接:https://files.ettus.com/manual/page_build_guide.html

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# 安装依赖
sudo apt-get install autoconf automake build-essential ccache cmake cpufrequtils doxygen ethtool \
g++ git inetutils-tools libboost-all-dev libncurses5 libncurses5-dev libusb-1.0-0 libusb-1.0-0-dev \
libusb-dev python3-dev python3-mako python3-numpy python3-requests python3-scipy python3-setuptools \
python3-ruamel.yaml
# 下载源码
git clone https://github.com/EttusResearch/uhd.git
# 编译安装
cd uhd
mkdir build
cd build
cmake ../
make -j$(nproc) && sudo make install
# 刷新动态链接库
sudo ldconfig
# 下载镜像并测试连接
sudo uhd_images_downloader
sudo uhd_usrp_probe

安装srsRAN_4G

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# 安装依赖
sudo apt-get install libfftw3-dev libmbedtls-dev libboost-program-options-dev libconfig++-dev libsctp-dev
# 下载源码
git clone https://github.com/srsRAN/srsRAN_4G.git
# 编译安装
cd srsRAN_4G
mkdir build
cd build
cmake ../
make -j$(nproc)

配置srsRAN_4G

经过测试可以正常使用的配置文件如下

如果找不到UE搜不到小区,就尝试取消注释中“修改点”的代码

epc.conf

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
#####################################################################
#                   srsEPC configuration file
#####################################################################

#####################################################################
# MME configuration
#
# mme_code:         8-bit MME code identifies the MME within a group.
# mme_group:        16-bit MME group identifier.
# tac:              16-bit Tracking Area Code.
# mcc:              Mobile Country Code
# mnc:              Mobile Network Code
# full_net_name     Display Name of the Network
# short_net_name    Short Display Name of the Network
# apn:                  Set Access Point Name (APN)
# mme_bind_addr:    IP bind addr to listen for eNB S1-MME connnections
# dns_addr:         DNS server address for the UEs
# encryption_algo:  Preferred encryption algorithm for NAS layer
#                   (supported: EEA0 (default), EEA1, EEA2, EEA3)
# integrity_algo:   Preferred integrity protection algorithm for NAS
#                   (supported: EIA0 (rejected by most UEs), EIA1 (default), EIA2, EIA3
# paging_timer:     Value of paging timer in seconds (T3413)
# request_imeisv:   Request UE's IMEI-SV in security mode command
# lac:              16-bit Location Area Code.
#
#####################################################################
[mme]
mme_code = 0x1a
mme_group = 0x0001
tac = 0x0007
mcc = 001
mnc = 01
mme_bind_addr = 127.0.1.100
apn = srsapn
dns_addr = 8.8.8.8
encryption_algo = EEA0
integrity_algo = EIA1
paging_timer = 2
request_imeisv = false
lac = 0x0006

#####################################################################
# HSS configuration
#
# db_file:         Location of .csv file that stores UEs information.
#
#####################################################################
[hss]
db_file = ../config/user_db.csv

#####################################################################
# SP-GW configuration
#
# gtpu_bind_addr:   GTP-U bind address.
# sgi_if_addr:      SGi TUN interface IP address.
# sgi_if_name:      SGi TUN interface name.
# max_paging_queue: Maximum packets in paging queue (per UE).
#
#####################################################################

[spgw]
gtpu_bind_addr   = 127.0.1.100
sgi_if_addr      = 172.16.0.1
sgi_if_name      = srs_spgw_sgi
max_paging_queue = 100

####################################################################
# PCAP configuration
#
# Packets are captured to file in the compact format decoded by
# the Wireshark s1ap dissector and with DLT 150.
# To use the dissector, edit the preferences for DLT_USER to
# add an entry with DLT=150, Payload Protocol=s1ap.
#
# enable:   Enable or disable the PCAP.
# filename: File name where to save the PCAP.
#
####################################################################
[pcap]
enable   = false
filename = /tmp/epc.pcap

####################################################################
# Log configuration
#
# Log levels can be set for individual layers. "all_level" sets log
# level for all layers unless otherwise configured.
# Format: e.g. s1ap_level = info
#
# In the same way, packet hex dumps can be limited for each level.
# "all_hex_limit" sets the hex limit for all layers unless otherwise
# configured.
# Format: e.g. s1ap_hex_limit = 32
#
# Logging layers: nas, s1ap, mme_gtpc, spgw_gtpc, gtpu, spgw, hss, all
# Logging levels: debug, info, warning, error, none
#
# filename: File path to use for log output. Can be set to stdout
#           to print logs to standard output
#####################################################################
[log]
all_level = info
all_hex_limit = 32
filename = /tmp/epc.log

#nas_level = debug
#s1ap_level = debug
#mme_gtpc_level = debug
#spgw_gtpc_level = debug
#gtpu_level = debug
#spgw_level = debug
#hss_level = debug

enb.conf

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
#####################################################################
#                   srsENB configuration file
#####################################################################

#####################################################################
# eNB configuration
#
# enb_id:               20-bit eNB identifier.
# mcc:                  Mobile Country Code
# mnc:                  Mobile Network Code
# mme_addr:             IP address of MME for S1 connnection
# gtp_bind_addr:        Local IP address to bind for GTP connection
# gtp_advertise_addr:   IP address of eNB to advertise for DL GTP-U Traffic
# s1c_bind_addr:        Local IP address to bind for S1AP connection
# s1c_bind_port:        Source port for S1AP connection (0 means any)
# n_prb:                Number of Physical Resource Blocks (6,15,25,50,75,100)
# tm:                   Transmission mode 1-4 (TM1 default)
# nof_ports:            Number of Tx ports (1 port default, set to 2 for TM2/3/4)
#
#####################################################################
[enb]
enb_id = 0x19B
mcc = 001
mnc = 01
mme_addr = 127.0.1.100
gtp_bind_addr = 127.0.1.1
s1c_bind_addr = 127.0.1.1
s1c_bind_port = 0
n_prb = 50
# n_prb = 100 # 修改处1-物理资源块数量
#tm = 4
# tm = 1 # 修改处2-传输模式
#nof_ports = 2
# nof_ports = 1 # 修改处3-天线端口数量



#####################################################################
# eNB configuration files
#
# sib_config:  SIB1, SIB2 and SIB3 configuration file
# note: When enabling MBMS, use the sib.conf.mbsfn configuration file which includes SIB13
# rr_config:   Radio Resources configuration file
# rb_config:   SRB/DRB configuration file
#####################################################################
[enb_files]
sib_config = ../config/sib.conf
rr_config  = ../config/rr.conf
rb_config = ../config/rb.conf

#####################################################################
# RF configuration
#
# dl_earfcn: EARFCN code for DL (only valid if a single cell is configured in rr.conf)
# tx_gain: Transmit gain (dB).
# rx_gain: Optional receive gain (dB). If disabled, AGC if enabled
#
# Optional parameters:
# dl_freq:            Override DL frequency corresponding to dl_earfcn
# ul_freq:            Override UL frequency corresponding to dl_earfcn (must be set if dl_freq is set)
# device_name:        Device driver family
#                     Supported options: "auto" (uses first driver found), "UHD", "bladeRF", "soapy", "zmq" or "Sidekiq"
# device_args:        Arguments for the device driver. Options are "auto" or any string.
#                     Default for UHD: "recv_frame_size=9232,send_frame_size=9232"
#                     Default for bladeRF: ""
# time_adv_nsamples:  Transmission time advance (in number of samples) to compensate for RF delay
#                     from antenna to timestamp insertion.
#                     Default "auto". B210 USRP: 100 samples, bladeRF: 27
#####################################################################
[rf]
dl_earfcn = 3350
# dl_earfcn = 500 # 修改处4-下行 LTE 载波的中心频率
tx_gain = 80 # 发射功率
rx_gain = 40
# rx_gain = 70 # 修改处5-接收信号的灵敏度
# device_args = type=b200, clock=external,master_clock_rate=23.04e6 # 修改处7-SDR设备、时钟源、主时钟频率

#device_name = auto

# For best performance in 2x2 MIMO and >= 15 MHz use the following device_args settings:
#     USRP B210: num_recv_frames=64,num_send_frames=64
#     And for 75 PRBs, also append ",master_clock_rate=15.36e6" to the device args

# For best performance when BW<5 MHz (25 PRB), use the following device_args settings:
#     USRP B210: send_frame_size=512,recv_frame_size=512

#device_args = auto
#time_adv_nsamples = auto

# Example for ZMQ-based operation with TCP transport for I/Q samples
#device_name = zmq
#device_args = fail_on_disconnect=true,tx_port=tcp://*:2000,rx_port=tcp://localhost:2001,id=enb,base_srate=23.04e6

#####################################################################
# Packet capture configuration
#
# MAC-layer packets are captured to a file in the compact format which can
# be decoded by Wireshark. For decoding, use the UDP dissector and the UDP
# heuristic dissection. Edit the preferences (Edit > Preferences >
# Protocols > DLT_USER) for DLT_USER to add an entry for DLT=149 with
# Protocol=udp. Further, enable the heuristic dissection in UDP under:
# Analyze > Enabled Protocols > MAC-LTE > mac_lte_udp and MAC-NR > mac_nr_udp
# For more information see: https://wiki.wireshark.org/MAC-LTE
# Configuring this Wireshark preferences is needed for decoding the MAC PCAP
# files as well as for the live network capture option.
#
# Please note that this setting will by default only capture MAC
# frames on dedicated channels, and not SIB.  You have to build with
# WRITE_SIB_PCAP enabled in srsenb/src/stack/mac/mac.cc if you want
# SIB to be part of the MAC pcap file.
#
# S1AP Packets are captured to a file in the compact format which can
# be decoded by the Wireshark s1ap dissector with DLT 150.
# To use the dissector, edit the preferences for DLT_USER to
# add an entry with DLT=150, Payload Protocol=s1ap.
#
# enable:        Enable MAC layer packet captures (true/false)
# filename:      File path to use for LTE MAC packet captures
# nr_filename:   File path to use for NR MAC packet captures
# s1ap_enable:   Enable or disable the PCAP.
# s1ap_filename: File name where to save the PCAP.
#
# mac_net_enable: Enable MAC layer packet captures sent over the network (true/false default: false)
# bind_ip: Bind IP address for MAC network trace (default: "0.0.0.0")
# bind_port: Bind port for MAC network trace (default: 5687)
# client_ip: Client IP address for MAC network trace (default: "127.0.0.1")
# client_port Client IP address for MAC network trace (default: 5847)
#####################################################################
[pcap]
#enable = false
#filename = /tmp/enb_mac.pcap
#nr_filename = /tmp/enb_mac_nr.pcap
#s1ap_enable = false
#s1ap_filename = /tmp/enb_s1ap.pcap

#mac_net_enable = false
#bind_ip = 0.0.0.0
#bind_port = 5687
#client_ip = 127.0.0.1
#client_port = 5847

#####################################################################
# Log configuration
#
# Log levels can be set for individual layers. "all_level" sets log
# level for all layers unless otherwise configured.
# Format: e.g. phy_level = info
#
# In the same way, packet hex dumps can be limited for each level.
# "all_hex_limit" sets the hex limit for all layers unless otherwise
# configured.
# Format: e.g. phy_hex_limit = 32
#
# Logging layers: rf, phy, phy_lib, mac, rlc, pdcp, rrc, gtpu, s1ap, stack, all
# Logging levels: debug, info, warning, error, none
#
# filename: File path to use for log output. Can be set to stdout
#           to print logs to standard output
# file_max_size: Maximum file size (in kilobytes). When passed, multiple files are created.
#                If set to negative, a single log file will be created.
#####################################################################
[log]
all_level = warning
all_hex_limit = 32
filename = /tmp/enb.log
file_max_size = -1

[gui]
enable = false

#####################################################################
# Scheduler configuration options
#
# sched_policy:      User MAC scheduling policy (E.g. time_rr, time_pf)
# min_aggr_level:    Optional minimum aggregation level index (l=log2(L) can be 0, 1, 2 or 3)
# max_aggr_level:    Optional maximum aggregation level index (l=log2(L) can be 0, 1, 2 or 3)
# adaptive_aggr_level: Boolean flag to enable/disable adaptive aggregation level based on target BLER
# pdsch_mcs:         Optional fixed PDSCH MCS (ignores reported CQIs if specified)
# pdsch_max_mcs:     Optional PDSCH MCS limit
# pusch_mcs:         Optional fixed PUSCH MCS (ignores reported CQIs if specified)
# pusch_max_mcs:     Optional PUSCH MCS limit
# min_nof_ctrl_symbols: Minimum number of control symbols
# max_nof_ctrl_symbols: Maximum number of control symbols
# pucch_multiplex_enable: Allow PUCCH HARQ to collide with PUSCH and other PUCCH
# pucch_harq_max_rb: Maximum number of RB to be used for PUCCH on the edges of the grid.
#                    If defined and greater than 0, the scheduler will avoid DL PDCCH allocations if
#                    PUCCH HARQ falls outside this region
# target_bler:       Target BLER (in decimal) to achieve via adaptive link
# max_delta_dl_cqi:  Maximum shift in CQI for adaptive DL link
# max_delta_ul_snr:  Maximum shift in UL SNR for adaptive UL link
# adaptive_dl_mcs_step_size: Step size or learning rate used in adaptive DL MCS link
# adaptive_ul_mcs_step_size: Step size or learning rate used in adaptive UL MCS link
# min_tpc_tti_interval: Minimum TTI interval between TPCs different than 1
# ul_snr_avg_alpha:  Exponential Average alpha coefficient used in estimation of UL SNR
# init_ul_snr_value: Initial UL SNR value used for computing MCS in the first UL grant
# init_dl_cqi:       DL CQI value used before any CQI report is available to the eNB
# max_sib_coderate:  Upper bound on SIB and RAR grants coderate
# pdcch_cqi_offset:  CQI offset in derivation of PDCCH aggregation level
# nr_pdsch_mcs:      Optional fixed NR PDSCH MCS (ignores reported CQIs if specified)
# nr_pusch_mcs:      Optional fixed NR PUSCH MCS (ignores reported CQIs if specified)
#
#####################################################################
[scheduler]
#policy     = time_pf
#policy_args = 2
#min_aggr_level   = 0
#max_aggr_level   = 3
#adaptive_aggr_level = false
#pdsch_mcs        = -1
#pdsch_max_mcs    = -1
#pusch_mcs        = -1
#pusch_max_mcs    = 16
#min_nof_ctrl_symbols = 1
#max_nof_ctrl_symbols = 3
#pucch_multiplex_enable = false
#pucch_harq_max_rb = 0
#target_bler = 0.05
#max_delta_dl_cqi = 5
#max_delta_ul_snr = 5
#adaptive_dl_mcs_step_size = 0.001
#adaptive_ul_mcs_step_size = 0.001
#min_tpc_tti_interval = 1
#ul_snr_avg_alpha=0.05
#init_ul_snr_value=5
#init_dl_cqi=5
#max_sib_coderate=0.3
#pdcch_cqi_offset=0
#nr_pdsch_mcs=28
#nr_pusch_mcs=28

#####################################################################
# Slicing configuration
# enable_eMBB           Enables enhanced mobile broadband (eMBB) slice in the gNodeB
# enable_URLLC          Enables Ultra Reliable Low Latency Communications (URLLC) slice in the gNodeB
# enable_MIoT           Enables Massive Internet of Things (MIoT) slice in the gNodeB
# eMBB_sd               eMBB slice differentiator
# URLLC_sd              URLLC slice differentiator
# MIoT_sd               MIoT slice differentiator
#####################################################################
[slicing]
#enable_eMBB = false
#enable_URLLC = false
#enable_MIoT = false
#eMBB_sd = 1
#URLLC_sd = 1
#MIoT_sd = 1

#####################################################################
# eMBMS configuration options
#
# enable:               Enable MBMS transmission in the eNB
# m1u_multiaddr:        Multicast address the M1-U socket will register to
# m1u_if_addr:          Address of the interface the M1-U interface will listen to for multicast packets
# mcs:                  Modulation and Coding scheme for MBMS traffic
#
#####################################################################
[embms]
#enable = false
#m1u_multiaddr = 239.255.0.1
#m1u_if_addr = 127.0.1.201
#mcs = 20



#####################################################################
# Channel emulator options:
# enable:            Enable/disable internal Downlink/Uplink channel emulator
#
# -- AWGN Generator
# awgn.enable:       Enable/disable AWGN generator
# awgn.snr:          Target SNR in dB
#
# -- Fading emulator
# fading.enable:     Enable/disable fading simulator
# fading.model:      Fading model + maximum doppler (E.g. none, epa5, eva70, etu300, etc)
#
# -- Delay Emulator     delay(t) = delay_min + (delay_max - delay_min) * (1 + sin(2pi*t/period)) / 2
#                       Maximum speed [m/s]: (delay_max - delay_min) * pi * 300 / period
# delay.enable:      Enable/disable delay simulator
# delay.period_s:    Delay period in seconds
# delay.init_time_s: Delay initial time in seconds
# delay.maximum_us:  Maximum delay in microseconds
# delay.minumum_us:  Minimum delay in microseconds
#
# -- Radio-Link Failure (RLF) Emulator
# rlf.enable:        Enable/disable RLF simulator
# rlf.t_on_ms:       Time for On state of the channel (ms)
# rlf.t_off_ms:      Time for Off state of the channel (ms)
#
# -- High Speed Train Doppler model simulator
# hst.enable:        Enable/disable HST simulator
# hst.period_s:      HST simulation period in seconds
# hst.fd_hz:         Doppler frequency in Hz
# hst.init_time_s:   Initial time in seconds
#####################################################################
[channel.dl]
#enable        = false

[channel.dl.awgn]
#enable        = false
#snr            = 30

[channel.dl.fading]
#enable        = false
#model         = none

[channel.dl.delay]
#enable        = false
#period_s      = 3600
#init_time_s   = 0
#maximum_us    = 100
#minimum_us    = 10

[channel.dl.rlf]
#enable        = false
#t_on_ms       = 10000
#t_off_ms      = 2000

[channel.dl.hst]
#enable        = false
#period_s      = 7.2
#fd_hz         = 750.0
#init_time_s   = 0.0

[channel.ul]
#enable        = false

[channel.ul.awgn]
#enable        = false
#n0            = -30

[channel.ul.fading]
#enable        = false
#model         = none

[channel.ul.delay]
#enable        = false
#period_s      = 3600
#init_time_s   = 0
#maximum_us    = 100
#minimum_us    = 10

[channel.ul.rlf]
#enable        = false
#t_on_ms       = 10000
#t_off_ms      = 2000

[channel.ul.hst]
#enable        = false
#period_s      = 7.2
#fd_hz         = -750.0
#init_time_s   = 0.0

#####################################################################
# CFR configuration options
#
# The CFR module provides crest factor reduction for the transmitted signal.
#
# enable:           Enable or disable the CFR. Default: disabled
#
# mode:             manual:   CFR threshold is set by cfr_manual_thres (default).
#                   auto_ema: CFR threshold is adaptive based on the signal PAPR. Power avg. with Exponential Moving Average.
#                             The time constant of the averaging can be tweaked with the ema_alpha parameter.
#                   auto_cma: CFR threshold is adaptive based on the signal PAPR. Power avg. with Cumulative Moving Average.
#                             Use with care, as CMA's increasingly slow response may be unsuitable for most use cases.
#
# strength:         Ratio between amplitude-limited vs unprocessed signal (0 to 1). Default: 1
# manual_thres:     Fixed manual clipping threshold for CFR manual mode. Default: 0.5
# auto_target_papr: Signal PAPR target (in dB) in CFR auto modes. output PAPR can be higher due to peak smoothing. Default: 8
# ema_alpha:        Alpha coefficient for the power average in auto_ema mode. Default: 1/7
#
#####################################################################
[cfr]
#enable           = false
#mode             = manual
#manual_thres     = 0.5
#strength         = 1
#auto_target_papr = 8
#ema_alpha        = 0.0143

# E2 Agent configuration options
#
# ric_ip:                IP address of the RIC controller
# ric_port:              Port of the RIC controller
# ric_bind_ip:           Local IP address to bind for RIC connection
# ric_bind_port:         Local port to bind for RIC connection
# max_ric_setup_retries: Maximum amount of retries to setup the RIC connection. If this value is exceeded, an alarm is written to the log. -1 means infinity.
# ric_connect_timer:     Connection Retry Timer for RIC connection (seconds)
#####################################################################
[e2_agent]
#enable = false
#ric_ip =  127.0.0.1
#ric_port = 36421
#ric_bind_ip =  127.0.0.1
#ric_bind_port = 36425
#max_ric_setup_retries = -1
#ric_connect_timer = 10

#####################################################################
# Expert configuration options
#
# pusch_max_its:        Maximum number of turbo decoder iterations (default: 4)
# nr_pusch_max_its:     Maximum number of LDPC iterations for NR (Default 10)
# pusch_8bit_decoder:   Use 8-bit for LLR representation and turbo decoder trellis computation (experimental)
# nof_phy_threads:      Selects the number of PHY threads (maximum: 4, minimum: 1, default: 3)
# metrics_period_secs:  Sets the period at which metrics are requested from the eNB
# metrics_csv_enable:   Write eNB metrics to CSV file.
# metrics_csv_filename: File path to use for CSV metrics
# report_json_enable:   Write eNB report to JSON file (default: disabled)
# report_json_filename: Report JSON filename (default: /tmp/enb_report.json)
# report_json_asn1_oct: Prints ASN1 messages encoded as an octet string instead of plain text in the JSON report file
# alarms_log_enable:    Enable Alarms logging (default: disabled)
# alarms_filename:      Alarms logging filename (default: /tmp/alarms.log)
# tracing_enable:       Write source code tracing information to a file
# tracing_filename:     File path to use for tracing information
# tracing_buffcapacity: Maximum capacity in bytes the tracing framework can store
# stdout_ts_enable:     Prints once per second the timestamp into stdout
# tx_amplitude:         Transmit amplitude factor (set 0-1 to reduce PAPR)
# rrc_inactivity_timer  Inactivity timeout used to remove UE context from RRC (in milliseconds)
# max_mac_dl_kos:       Maximum number of consecutive KOs in DL before triggering the UE's release (default: 100)
# max_mac_ul_kos:       Maximum number of consecutive KOs in UL before triggering the UE's release (default: 100)
# max_prach_offset_us:  Maximum allowed RACH offset (in us)
# nof_prealloc_ues:     Number of UE memory resources to preallocate during eNB initialization for faster UE creation (default: 8)
# rlf_release_timer_ms: Time taken by eNB to release UE context after it detects an RLF
# eea_pref_list:        Ordered preference list for the selection of encryption algorithm (EEA) (default: EEA0, EEA2, EEA1)
# eia_pref_list:        Ordered preference list for the selection of integrity algorithm (EIA) (default: EIA2, EIA1, EIA0)
# gtpu_tunnel_timeout:  Time that GTPU takes to release indirect forwarding tunnel since the last received GTPU PDU (0 for no timer)
# ts1_reloc_prep_timeout: S1AP TS 36.413 TS1RelocPrep Expiry Timeout value in milliseconds
# ts1_reloc_overall_timeout: S1AP TS 36.413 TS1RelocOverall Expiry Timeout value in milliseconds
# rlf_release_timer_ms: Time taken by eNB to release UE context after it detects a RLF
# rlf_min_ul_snr_estim: SNR threshold in dB below which the enb is notified with RLF ko
# s1_setup_max_retries: Maximum amount of retries to setup the S1AP connection. If this value is exceeded, an alarm is written to the log. -1 means infinity.
# s1_connect_timer:     Connection Retry Timer for S1 connection (seconds)
# rx_gain_offset:       RX Gain offset to add to rx_gain to calibrate RSRP readings
# use_cedron_f_est_alg: Whether to use Cedron algorithm for TA estimation or not (Default: false)
#####################################################################
[expert]
#pusch_max_its        = 8 # These are half iterations
#nr_pusch_max_its     = 10
#pusch_8bit_decoder   = false
#nof_phy_threads      = 3
#metrics_period_secs  = 1
#metrics_csv_enable   = false
#metrics_csv_filename = /tmp/enb_metrics.csv
#report_json_enable   = true
#report_json_filename = /tmp/enb_report.json
#report_json_asn1_oct = false
#alarms_log_enable    = true
#alarms_filename      = /tmp/enb_alarms.log
#tracing_enable       = true
#tracing_filename     = /tmp/enb_tracing.log
#tracing_buffcapacity = 1000000
#stdout_ts_enable     = false
#tx_amplitude         = 0.6
#rrc_inactivity_timer = 30000
#max_mac_dl_kos       = 100
#max_mac_ul_kos       = 100
#max_prach_offset_us  = 30
#nof_prealloc_ues     = 8
#rlf_release_timer_ms = 4000
#lcid_padding         = 3
#eea_pref_list = EEA0, EEA2, EEA1
#eia_pref_list = EIA2, EIA1, EIA0
#gtpu_tunnel_timeout = 0
#extended_cp         = false
#ts1_reloc_prep_timeout = 10000
#ts1_reloc_overall_timeout = 10000
#rlf_release_timer_ms = 4000
#rlf_min_ul_snr_estim = -2
#s1_setup_max_retries = -1
#s1_connect_timer = 10
#rx_gain_offset = 62
#mac_prach_bi         = 0
#use_cedron_f_est_alg = false

user_db.csv

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#
# .csv to store UE's information in HSS
# Kept in the following format: "Name,Auth,IMSI,Key,OP_Type,OP/OPc,AMF,SQN,QCI,IP_alloc"
#
# Name:     Human readable name to help distinguish UE's. Ignored by the HSS
# Auth:     Authentication algorithm used by the UE. Valid algorithms are XOR
#           (xor) and MILENAGE (mil)
# IMSI:     UE's IMSI value
# Key:      UE's key, where other keys are derived from. Stored in hexadecimal
# OP_Type:  Operator's code type, either OP or OPc
# OP/OPc:   Operator Code/Cyphered Operator Code, stored in hexadecimal
# AMF:      Authentication management field, stored in hexadecimal
# SQN:      UE's Sequence number for freshness of the authentication
# QCI:      QoS Class Identifier for the UE's default bearer.
# IP_alloc: IP allocation stratagy for the SPGW.
#           With 'dynamic' the SPGW will automatically allocate IPs
#           With a valid IPv4 (e.g. '172.16.0.2') the UE will have a statically assigned IP.
#
# Note: Lines starting by '#' are ignored and will be overwritten
# (ue_name),(algo),(imsi),(K),(OP/OPc_type),(OP/OPc_value),(AMF),(SQN),(QCI),(IP_alloc)
ue1,mil,001012345678901,00112233445566778899aabbccddeeff,opc,63bfa50ee6523365ff14c1f45f88737d,8000,000000003fc1,7,dynamic
ue2,mil,001010123456780,00112233445566778899aabbccddeeff,opc,63bfa50ee6523365ff14c1f45f88737d,8000,000000001234,7,dynamic
ue3,mil,221010123456789,6874736969202073796d4b2079650a76,opc,504f20634f6320504f50206363500a4f,8000,000000001404,7,dynamic

刷写SIM卡并新建APN

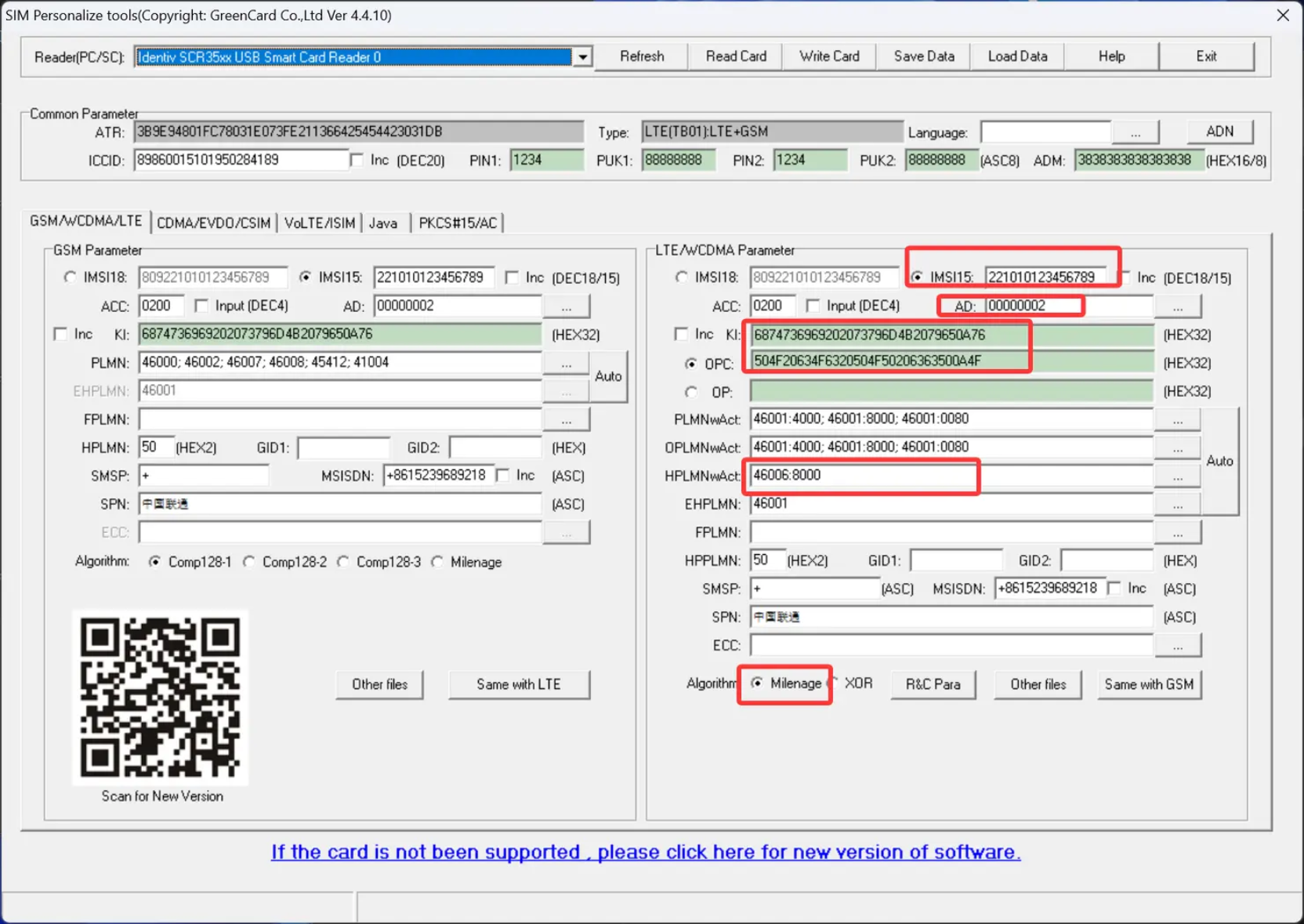

根据 user_db.csv 中的内容(HSS 归属用户服务器数据库),插入写卡器和白卡,用 GRSIMWrite 写入SIM卡信息,即修改下图中红色框框圈起来的字段即可

imgs/image-20250803165126195.png

然后UE上 设置-移动网络-移动数据-接入点名称(APN)-添加一个名称和APN为srsapn的接入点即可

运行srsRAN_4G

先用以下命令将电脑CPU调整至高性能模式

1
echo "performance" | sudo tee /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor

启动NAT流量伪装

1
2
3
4
# 启用 Linux 内核的 IP 转发功能
echo 1 | sudo tee /proc/sys/net/ipv4/ip_forward 1>/dev/null
# 配置 NAT 伪装,使得内网设备(172.16.0.0/24)通过主机的 wlo1 接口访问外网时,其源 IP 会被替换为主机的公网 IP,实现共享上网。
sudo iptables -t nat -A POSTROUTING -s 172.16.0.0/24 -o wlo1 -j MASQUERADE

启动核心网和基站

1
2
sudo ./srsepc/src/srsepc ../config/epc.conf
sudo ./srsenb/src/srsenb ../config/enb.conf

常见问题

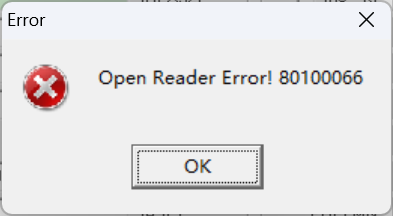

GRSIMWrite Open Error

如果出现下面这个报错,说明卡的方向插反了

imgs/image-20250803165142335.png

修改方向重新插入SIM卡后即可正常使用

EPC读取user_db.csv失败

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
(base) [10ms][master][~/workarea/srsRAN_4G/build]$ sudo ./srsepc/src/srsepc ../config/epc.conf

Built in Release mode using commit ec29b0c1f on branch master.


---  Software Radio Systems EPC  ---

Reading configuration file ../config/epc.conf...
Error reading user database file ../config/user_db.csv
Error initializing HSS

大概率是csv文件格式问题,检查其中是否有多余的空格,这里放一份可以正常使用的模板

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
#
# .csv to store UE's information in HSS
# Kept in the following format: "Name,Auth,IMSI,Key,OP_Type,OP/OPc,AMF,SQN,QCI,IP_alloc"
#
# Name:     Human readable name to help distinguish UE's. Ignored by the HSS
# Auth:     Authentication algorithm used by the UE. Valid algorithms are XOR
#           (xor) and MILENAGE (mil)
# IMSI:     UE's IMSI value
# Key:      UE's key, where other keys are derived from. Stored in hexadecimal
# OP_Type:  Operator's code type, either OP or OPc
# OP/OPc:   Operator Code/Cyphered Operator Code, stored in hexadecimal
# AMF:      Authentication management field, stored in hexadecimal
# SQN:      UE's Sequence number for freshness of the authentication
# QCI:      QoS Class Identifier for the UE's default bearer.
# IP_alloc: IP allocation stratagy for the SPGW.
#           With 'dynamic' the SPGW will automatically allocate IPs
#           With a valid IPv4 (e.g. '172.16.0.2') the UE will have a statically assigned IP.
#
# Note: Lines starting by '#' are ignored and will be overwritten
ue1,mil,001012345678901,00112233445566778899aabbccddeeff,opc,63bfa50ee6523365ff14c1f45f88737d,8000,000000003fc1,7,dynamic
ue2,mil,221010123456789,6874736969202073796d4b2079650a76,opc,504f20634f6320504f50206363500a4f,8000,000000001404,7,dynamic

UE搜不到小区

  1. 可以尝试新建一个接入点,只要修改名称和APN为默认的srsapn即可
  2. 打开Cellular-Pro,查看是否锁网锁频段了,点击清除锁定即可

UE可以连接到基站,但是上不了网

原因可能是 srsepc_if_masq.sh 这个脚本运行出错了,导致流量转发失败

可以尝试用以下命令手动进行流量伪装

1
2
3
4
5
6
# 删除现有错误规则
sudo iptables -t nat -D POSTROUTING -o wlo1 -j MASQUERADE
# 关闭防火墙
sudo systemctl stop firewalld && sudo ufw disable
echo 1 | sudo tee /proc/sys/net/ipv4/ip_forward 1>/dev/null
sudo iptables -t nat -A POSTROUTING -s 172.16.0.0/24 -o wlo1 -j MASQUERADE

然后检查一下是否配置成功,如果能输出以下内容,则证明流量伪装成功

这一定要注意,必须是 172.16.0.0/24 的流量,而不能是所有流量

当出现 wlo1 数据包数量84和总字节数6684不为0的时候即配置成功

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
$ cat /proc/sys/net/ipv4/ip_forward
1
# 查看规则是否生效
$ sudo iptables -t nat -L POSTROUTING -n -v
Chain POSTROUTING (policy ACCEPT 17 packets, 1020 bytes)
 pkts bytes target     prot opt in     out     source               destination
    0     0 MASQUERADE  all  --  *      !docker0  172.17.0.0/16        0.0.0.0/0
    0     0 MASQUERADE  all  --  *      !br-436d37bf9f2b  172.19.0.0/16        0.0.0.0/0
    0     0 MASQUERADE  all  --  *      !br-0bab004e267a  172.18.0.0/16        0.0.0.0/0
   84  6684 MASQUERADE  all  --  *      wlo1    172.16.0.0/24        0.0.0.0/0

如果要删除规则可以用下面这个命令

1
2
3
4
# 获取规则的行号
sudo iptables -t nat -L POSTROUTING -n -v --line-numbers
# 删除第5行的规则
sudo iptables -t nat -D POSTROUTING 5

综上所述,可以解决这个问题的命令是

1
2
sudo ufw disable
sudo iptables -t nat -A POSTROUTING -s 172.16.0.0/24 -o wlo1 -j MASQUERADE

参考链接

https://docs.srsran.com/projects/4g/en/latest/app_notes/source/cots_ue/source/index.html

https://yuanze.wang/posts/lte-basestation-with-srslte-and-usrp/

https://blog.white-alone.com/%E4%BD%BF%E7%94%A8srsLTE%E6%90%AD%E5%BB%BA4G%E5%9F%BA%E7%AB%99%E7%94%A8%E4%BA%8E%E6%97%A5%E5%B8%B8%E6%B5%8B%E8%AF%95/

0%
